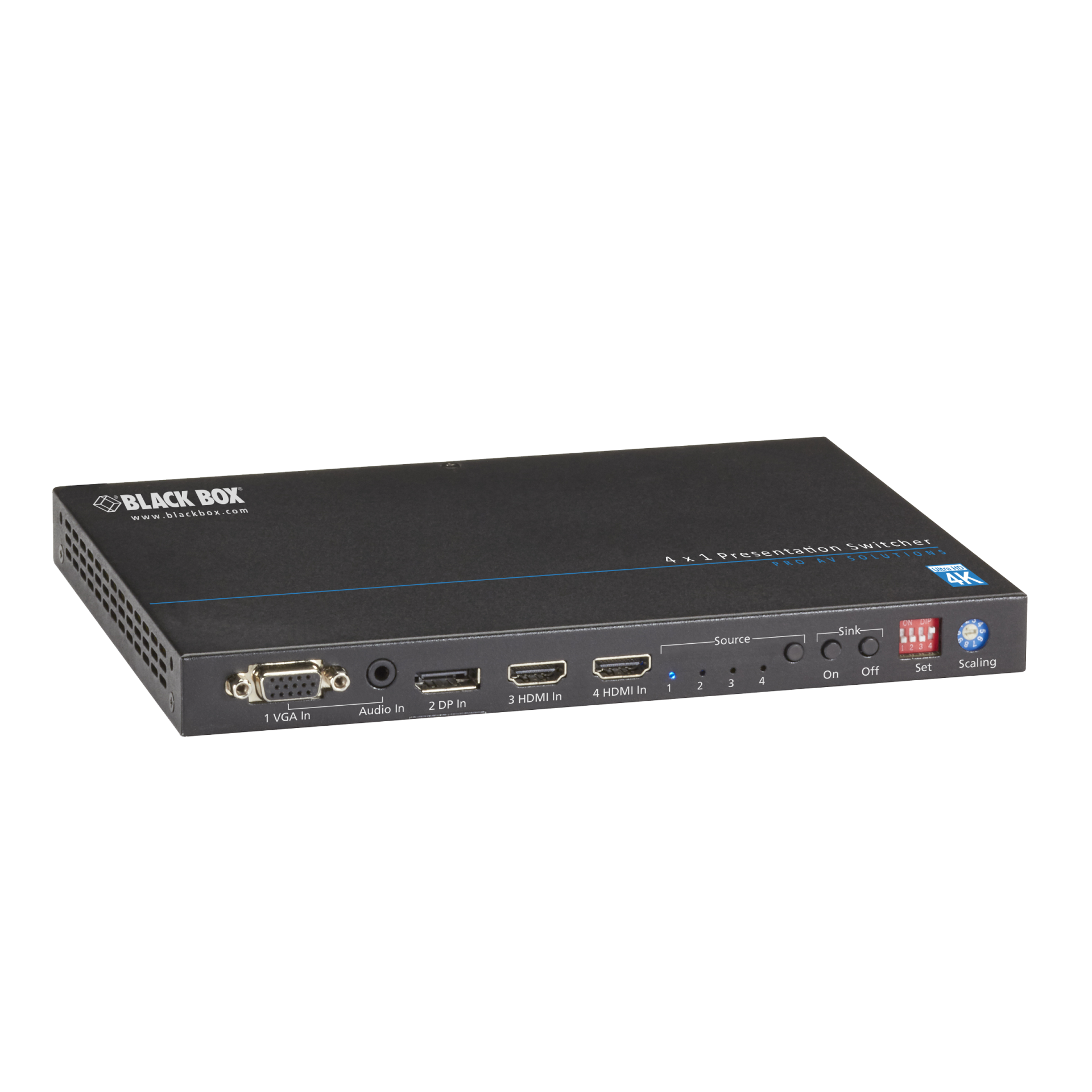

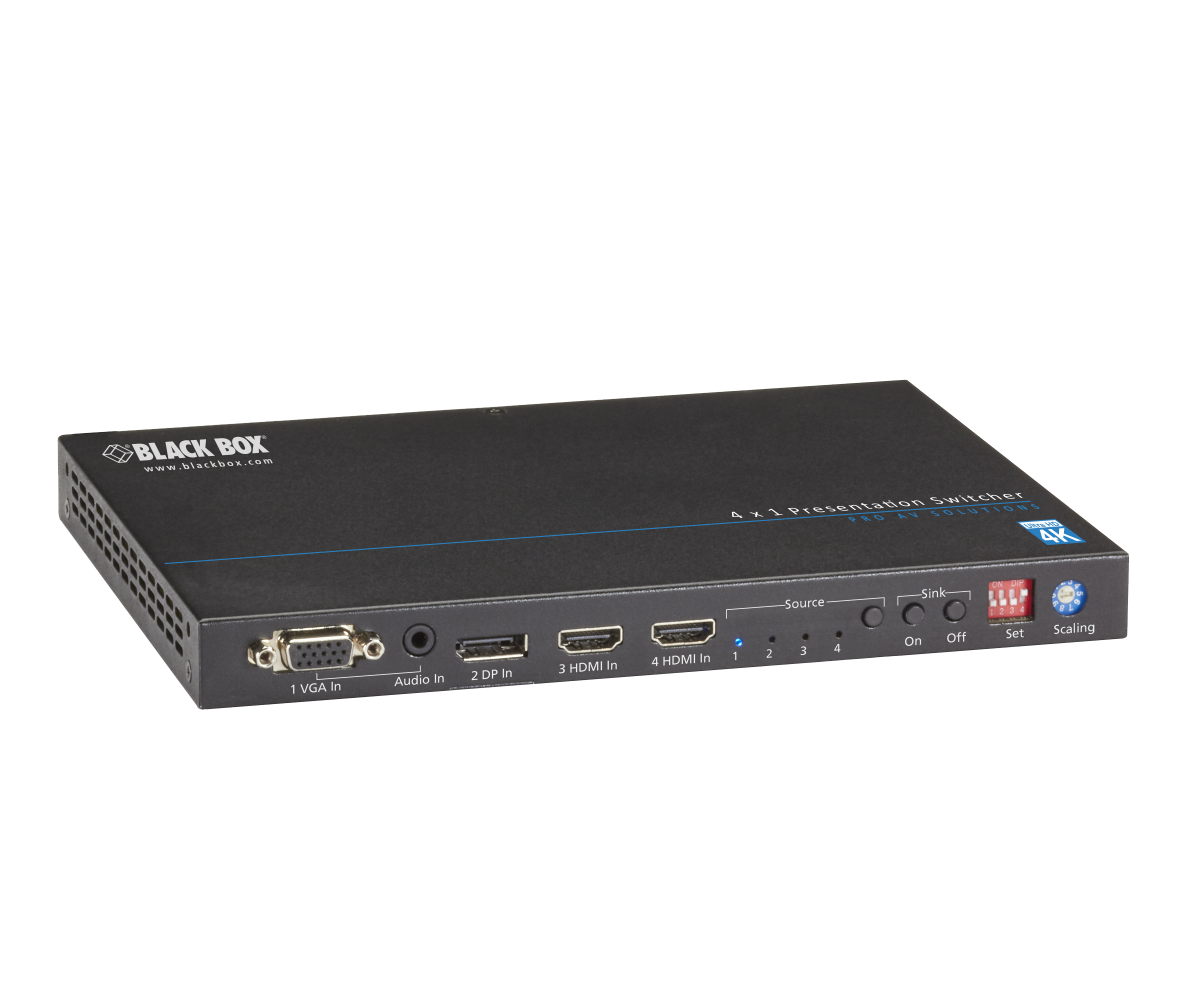

4x1 Presentation Switcher - 4K

Approvals —CE, FCC

Video —

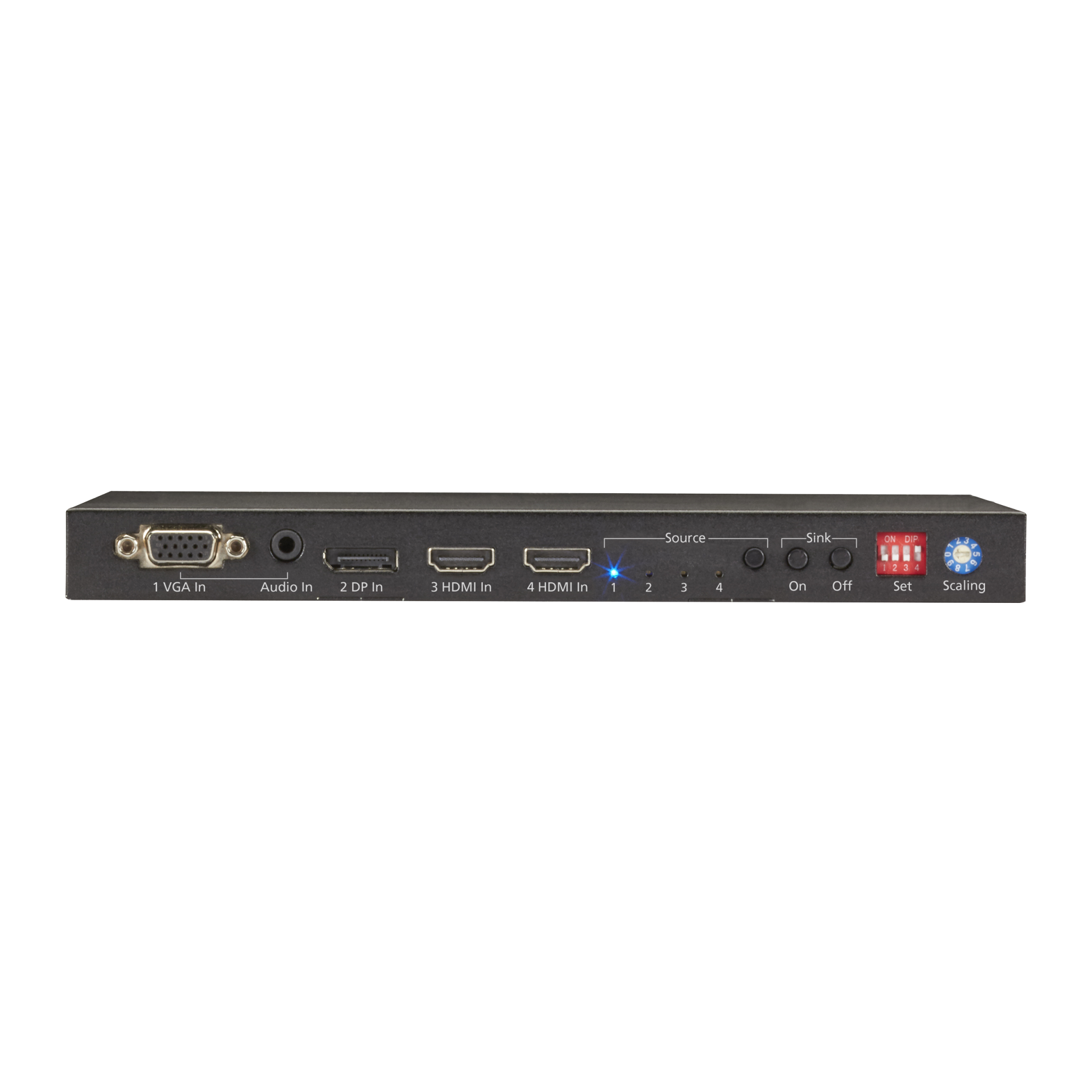

Input:
2 x HDMI IN
1 x DisplayPort IN
1 x VGA IN
1 x Stereo audio (embedded with VGA inputs)
Input Signal Type: HDMI 1.4
Input Resolution Support
VESA:
640 x 480@60Hz
800 x 600@60Hz
1024 x 768@60Hz, 1280 x 768@60Hz
1280 x 800@60Hz
1280 x 960@60Hz
1280 x 1024@60Hz
1360 x 768@60Hz
1366 x 768@60Hz
1440 x 900@60Hz
1600 x 900@60Hz
1600 x 1200@60Hz
1680 x 1050@60Hz
1920 x 1200@60Hz
HDTV:
720 x 480@60Hz
720 x 576@50Hz
1280 x 720@50/60Hz
1920 x 1080@50/60Hz
3840 x 2160@30HzM

• NOTE: HDMI/DP input up to 4K@30Hz, VGA input up to 1920x1200@60Hz

Input Video Level:0.5-1.2 V p-p
Input DDC Signal: 5V p-p
Maximum Pixel Clock: 297 MHz

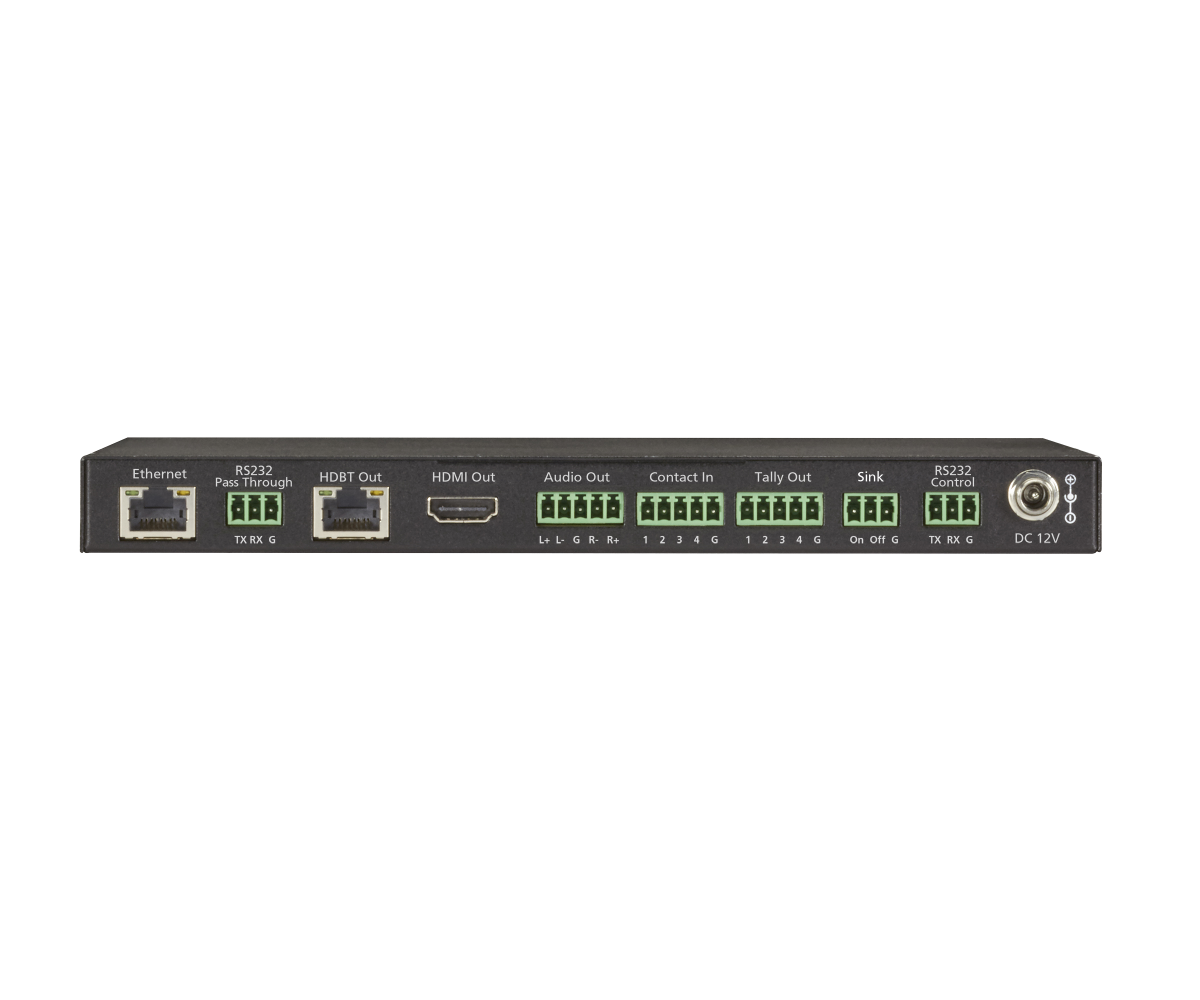

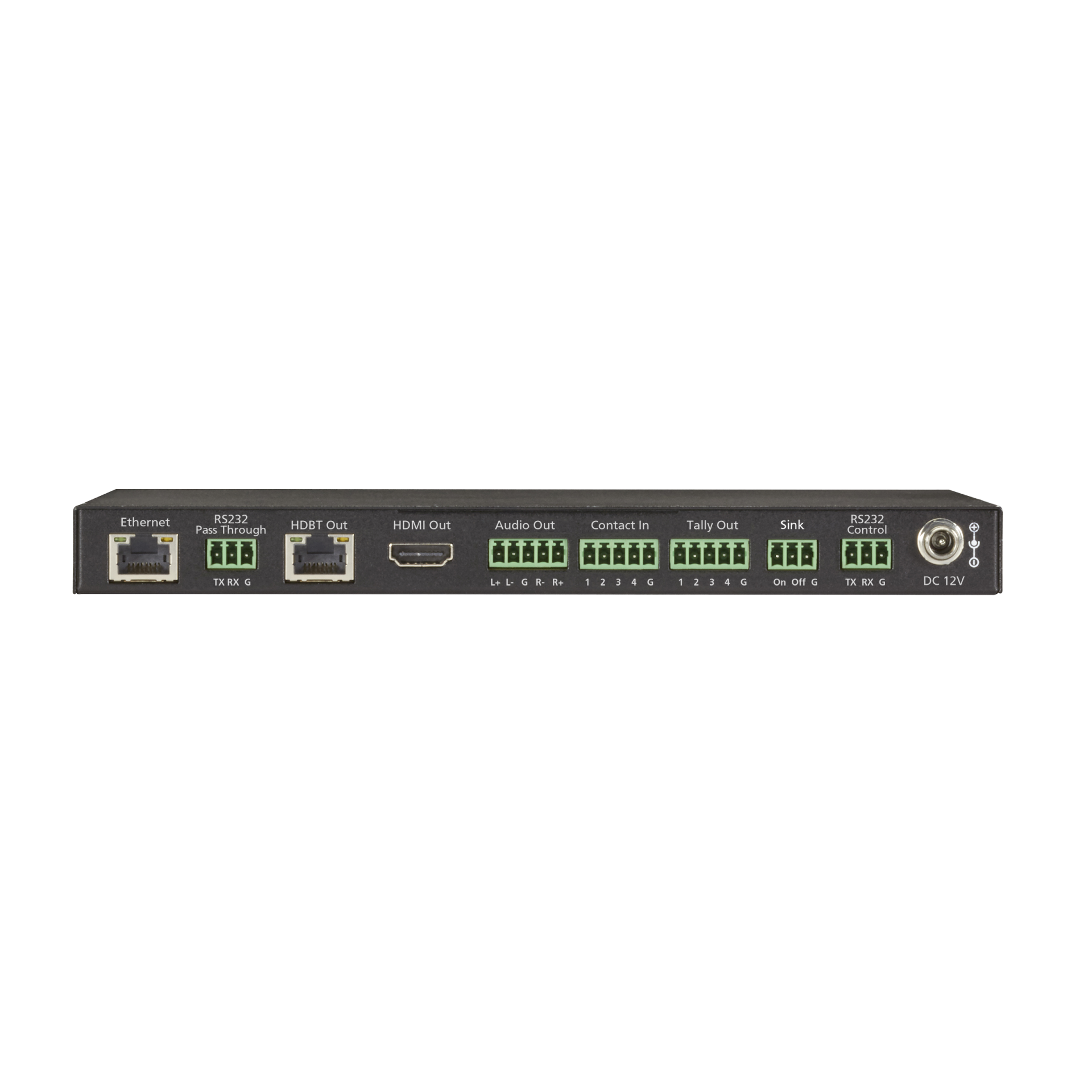

Output:
1 x HDMI OUT
1 x HDBaseT OUT
1 x Stereo audio
Output Signal Type: HDMI 1.4, HDBaseT
Output Resolution Support
VESA:
640 x 480@60Hz
800 x 600@60Hz
1024 x 768@60Hz
1280 x 768@60Hz
1280 x 800@60Hz
1280 x 960@60Hz
1280 x 1024@60Hz
1360 x 768@60Hz
1366 x 768@60Hz
1440 x 900@60Hz
1600 x 900@60Hz
1600 x 1200@60Hz
1680 x 1050@60Hz
1920 x 1200@60Hz
HDTV:
720 x 480@60Hz
720 x 576@50Hz
1280 x 720@50/60Hz
1920 x 1080@50/60Hz
3840 x 2160@30Hz
Video Impedance:100 Ω
Deep Color:
1080p: 48bit
4K: 24bit

Audio —
Input: Stereo audio (embedded with VGA inputs)
Output: 1 x balanced stereo audio outputs: 5-pin phoenix connector
Format:
HDMI OUT: PCM 2.0 and Dolby 5.1
HDBaseT OUT: Multichannel digital audio supporting up to 7.1 DTS Master HD and Dolby True HD
AUDIO OUT: PCM2.0

Control Method—RS-232, front panel buttons, contact closures

Power —
ESD Protection:
Human-body Model: ±8kV(Air-gap discharge)
±4kV(Contact discharge)
Surge Protection: Voltage: ±1 kV (ten times respectively for the positive and negative voltage)
Electrical Fast Transient/Burst: Data communication cord: 1 kV
Power cord: 2 kV
Power Supply: DC12V/3 Amp
Power Consumption: 22 Watts, maximum

Physical —
Dimensions: 16.4H x 22W x 2.1D cm (6.46"H x 8.66"W x 0.83"D), Rack Space Required: 1/2U
Weight: 0.82 kg (1.8 lb)

Environmental —
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 70°C
Humidity: 10% to 90%

• Supports all standard video formats including Display Port, HDMI, DVI (with adapters), and VGA.
• Up- or down-scale up to 4K (UHD) video to match display resolution for fast, seamless switching.
• Auto-switching ensures that the last connected source is always displayed.
• Warranty: 3 Year Double Diamond™ Warranty (Standard)
